The bioscara arm hardware interface class. More...

#include <arm_hardware.hpp>

Inheritance diagram for bioscara_hardware_interfaces::BioscaraArmHardwareInterface:

Classes
struct	joint_config_t
	configuration structure holding the passed paramters from the ros2_control urdf More...

struct	joint_homing_config_t
	configuration structure holding the passed homing paramters from the ros2_control urdf More...

Public Member Functions
hardware_interface::CallbackReturn	on_init (const hardware_interface::HardwareComponentInterfaceParams &params) override
	Called on initialization to the `unconfigured` state.

hardware_interface::CallbackReturn	on_shutdown (const rclcpp_lifecycle::State &previous_state) override
	Called on the transistion from the `inactive`, `unconfigured` and `active` to the `finalized` state.

hardware_interface::CallbackReturn	on_configure (const rclcpp_lifecycle::State &previous_state) override
	Called on the transistion from the `unconfigured` to the `inactive` state.

hardware_interface::CallbackReturn	on_cleanup (const rclcpp_lifecycle::State &previous_state) override
	Called on the transistion from the `inactive` to the `unconfigured` state.

hardware_interface::CallbackReturn	on_activate (const rclcpp_lifecycle::State &previous_state) override
	Called on the transistion from the `inactive` to the `active` state.

hardware_interface::CallbackReturn	on_deactivate (const rclcpp_lifecycle::State &previous_state) override
	Called on the transistion from the `active` to the `inactive` state.

hardware_interface::return_type	read (const rclcpp::Time &time, const rclcpp::Duration &period) override
	Reads from the hardware and populates the state interfaces.

hardware_interface::return_type	write (const rclcpp::Time &time, const rclcpp::Duration &period) override
	Writes commands to the hardware from the command interfaces.

hardware_interface::return_type	prepare_command_mode_switch (const std::vector< std::string > &start_interfaces, const std::vector< std::string > &stop_interfaces) override
	Performs checks and book keeping of the active control mode when changing controllers in non-realtime context.

hardware_interface::return_type	perform_command_mode_switch (const std::vector< std::string > &start_interfaces, const std::vector< std::string > &stop_interfaces) override
	Perform the mode-switching for the new command interface combination in realtime context.

hardware_interface::CallbackReturn	on_error (const rclcpp_lifecycle::State &previous_state) override
	Called when an error in any state or state transition is thrown.

Private Member Functions
bioscara_hardware_drivers::err_type_t	start_homing (const std::string name, float velocity)
	wrapper method to start homing.

bioscara_hardware_drivers::err_type_t	stop_homing (const std::string name)
	wrapper method to stop homing.

void	split_interface_string_to_joint_and_name (std::string interface, std::string &joint_name, std::string &interface_name)
	Split a interface string like "<joint_name>/<interface_name>" to "<joint_name>" and "<interface_name>".

bioscara_hardware_drivers::err_type_t	activate_joint (const std::string name)
	Enables each joint, enables the stall detection and sets the maximmum acceleration.

bioscara_hardware_drivers::err_type_t	deactivate_joint (const std::string name)
	Disables each joint.

Private Attributes
std::unordered_map< std::string, std::unique_ptr< bioscara_hardware_drivers::BaseJoint > >	_joints
	unordered map storing the pointers to BaseJoint objects. This will either be a MockJoint or Joint.

std::unordered_map< std::string, joint_config_t >	_joint_cfg
	unordered map storing the configuration struct of the joints.

std::unordered_map< std::string, std::set< std::string > >	_joint_command_modes
	unordered map of sets storing the active command interfaces for each joint.

std::unordered_map< std::string, std::set< std::string > >	_new_joint_command_modes
	Temporary cache of new joint_command_modes when switching controllers.

std::vector< std::pair< std::string, hardware_interface::InterfaceDescription * > >	_ordered_joint_state_interfaces_ptr
	A vector of a pair of interface name and pointer of the hardwares state interface which is ordered by joint and state interface type.

std::mutex	mtx
	A mutex that is used to prevent concurrent access to hardware and _joint_command_modes.

Detailed Description

The bioscara arm hardware interface class.

The hardware interface serves to wrap custom hardware interaction with the arm joints in the standardized ros2_control architecture.

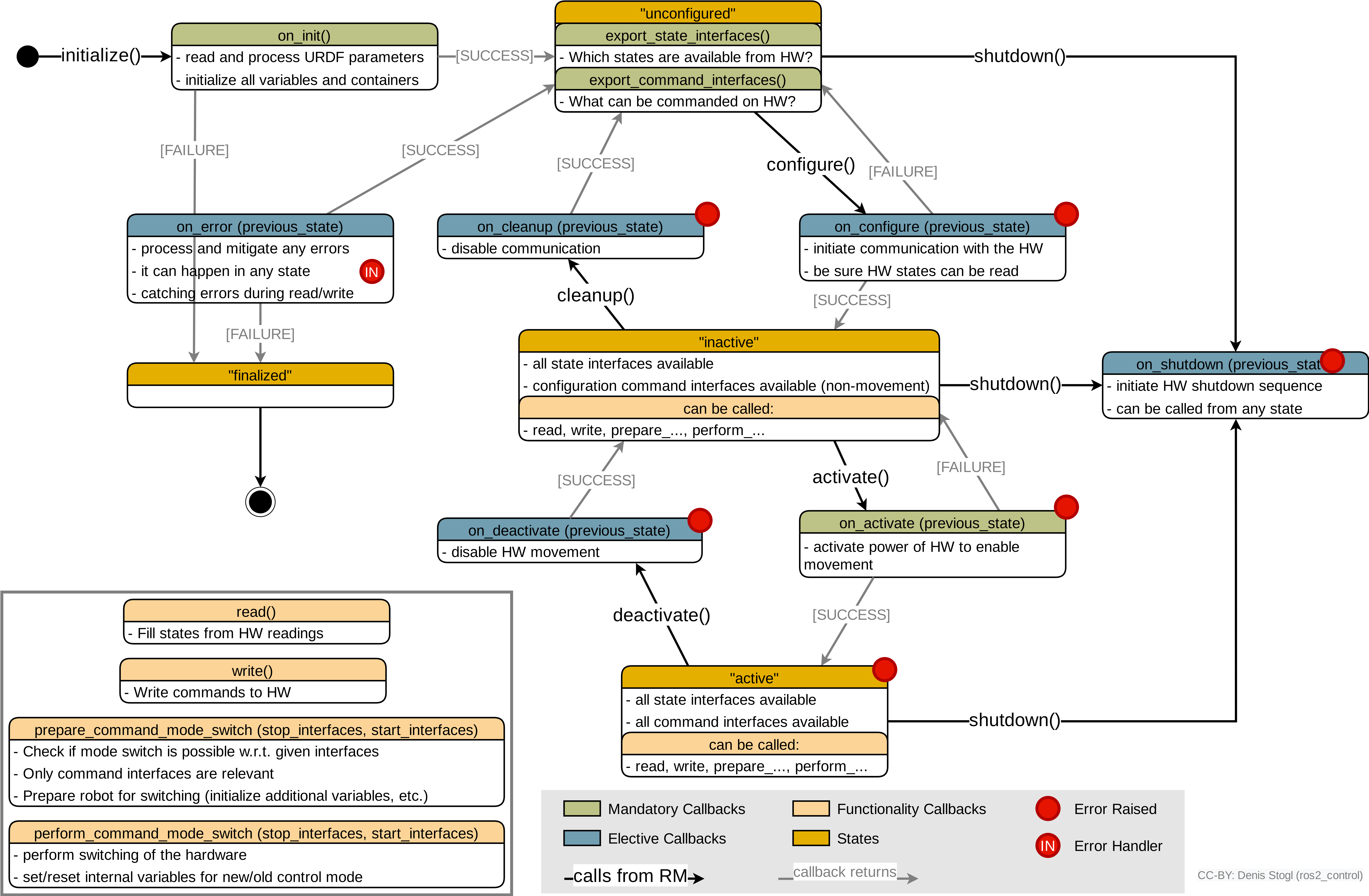

Hardware Lifecycle
The hardware follows the ros2_control hardware interface lifecyle which intern is following the ROS2 managed node lifecycle.

Hardware interface lifecycle

Member Function Documentation

◆ activate_joint()

bioscara_hardware_drivers::err_type_t bioscara_hardware_interfaces::BioscaraArmHardwareInterface::activate_joint ( const std::string name )

private

Enables each joint, enables the stall detection and sets the maximmum acceleration.

Parameters

name	joint name to enable

Returns: bioscara_hardware_drivers::err_type_t

◆ deactivate_joint()

bioscara_hardware_drivers::err_type_t bioscara_hardware_interfaces::BioscaraArmHardwareInterface::deactivate_joint ( const std::string name )

private

Disables each joint.

Parameters

name	joint name to disable

Returns: bioscara_hardware_drivers::err_type_t

◆ on_activate()

hardware_interface::CallbackReturn bioscara_hardware_interfaces::BioscaraArmHardwareInterface::on_activate ( const rclcpp_lifecycle::State & previous_state )

override

Called on the transistion from the inactive to the active state.

Calls activate_joint() to enable the joints.
It is allowed to activate the hardware even if it is not homed. To home the joint the homing_controller must be activated, but generally a hardware component must be active in order for controllers to become active.
To prohibit movement on activation the set point for each position command interface is set equal to the current measured position, and the velocity command is set to 0.0 for each command interface. The current values are obtained by calling the read() method once which populates the state interfaces with values.

Parameters

previous_state

Returns: hardware_interface::CallbackReturn

Below a workaround to force a read cycle of all joints to get inital values for the state interfaces. These will be copied to the command interface to prevent movement at startup.

◆ on_cleanup()

hardware_interface::CallbackReturn bioscara_hardware_interfaces::BioscaraArmHardwareInterface::on_cleanup ( const rclcpp_lifecycle::State & previous_state )

override

Called on the transistion from the inactive to the unconfigured state.

Disconnect from the joints.

Parameters

previous_state

Returns: hardware_interface::CallbackReturn

Disconnect from the joints and throw error if it fails

◆ on_configure()

hardware_interface::CallbackReturn bioscara_hardware_interfaces::BioscaraArmHardwareInterface::on_configure ( const rclcpp_lifecycle::State & previous_state )

override

Called on the transistion from the unconfigured to the inactive state.

Establish and test connection to each joint.

Parameters

previous_state

Returns: hardware_interface::CallbackReturn

◆ on_deactivate()

hardware_interface::CallbackReturn bioscara_hardware_interfaces::BioscaraArmHardwareInterface::on_deactivate ( const rclcpp_lifecycle::State & previous_state )

override

Called on the transistion from the active to the inactive state.

Disables all joints and thereby allows backdriving. State interfaces continue to be updated.

Parameters

previous_state

Returns: hardware_interface::CallbackReturn

disable the joints and throw error if it fails

◆ on_error()

hardware_interface::CallbackReturn bioscara_hardware_interfaces::BioscaraArmHardwareInterface::on_error ( const rclcpp_lifecycle::State & previous_state )

override

Called when an error in any state or state transition is thrown.

According to the ros2_control documentation:

‍Error handling follows the node lifecycle. If successful CallbackReturn::SUCCESS is returned and hardware is again in UNCONFIGURED state, if any ERROR or FAILURE happens the hardware ends in FINALIZED state and can not be recovered. The only option is to reload the complete plugin, but there is currently no service for this in the Controller Manager.

Since the hardware will immediatly return to the unconfigured state (source) if the error could be handled we manually call the transition functions which would normally be called to this state. Those are:

Previous state: active
- Deactivate hardware (on_deactivate()) -> inactive
- Clean-Up hardware (on_cleanup()) -> unconfigured
Previous state: inactive
- Deactivate hardware (on_deactivate()) -> inactive
  - call the deactivate function anyway regardless if state was active or inactive. For example if the on_activate() function fails on bioscara_hardware_drivers::Joint::enableStallguard() the joint will have been enabled, to disable it invoke on_deactivate().
- Clean-Up hardware (on_cleanup()) -> unconfigured

In particular the deactivation is important. For example if a joint stalls the read() or write() methods throw an error, which will be handled here and allow the hardware to be deactivated, disableing the joints to allow backdriving.

Parameters

previous_state

Returns: hardware_interface::CallbackReturn

◆ on_init()

hardware_interface::CallbackReturn bioscara_hardware_interfaces::BioscaraArmHardwareInterface::on_init ( const hardware_interface::HardwareComponentInterfaceParams & params )

override

Called on initialization to the unconfigured state.

Performs the following checks on the configures joints parsed form the URDF description:

Each joint must have the 3 command interfaces (in this order): 'position', 'velocity', 'home'
Each joint must have the 3 state interfaces (in this order): 'position', 'velocity', 'home'

Stores the configuration parameters for each joint in the _joint_cfg map. Each joint must have these parameters:

i2c_address (int, HEX)
reduction (float)
min (float)
max (float)
stall_threshold (int, DEC)
hold_current (int, DEC)
drive_current (int, DEC)
max_acceleration (float)
max_velocity (float)
homing
- speed (float)
- threshold (int, DEC)
- current (int, DEC)
- acceleration (float)

Adds each joint to the internal _joints map. Creates a MockJoint object if the use_mock_hardware parameter is 'True' or 'true', or else a hardware Joint.

Parameters

params

Returns: hardware_interface::CallbackReturn

Loop over all joints decribed in the hardware description file, check if they have the position and velocity command and state interface defined and finally add them to the internal _joints list

◆ on_shutdown()

hardware_interface::CallbackReturn bioscara_hardware_interfaces::BioscaraArmHardwareInterface::on_shutdown ( const rclcpp_lifecycle::State & previous_state )

override

Called on the transistion from the inactive, unconfigured and active to the finalized state.

When transitioning directly from active to finalized on_deactivate() is automatically called before Source Code If the previous state is either inactive or active the on_cleanup() method is called first. Then regardless of the previous state, the _joints map is cleared.

Parameters

previous_state

Returns: hardware_interface::CallbackReturn

◆ perform_command_mode_switch()

hardware_interface::return_type bioscara_hardware_interfaces::BioscaraArmHardwareInterface::perform_command_mode_switch	(	const std::vector< std::string > &	start_interfaces,
		const std::vector< std::string > &	stop_interfaces
	)

override

Perform the mode-switching for the new command interface combination in realtime context.

Performs the following actions:

acquires the mtx lock to protect the critical members.
Copies the cached _new_joint_command_modes to the _joint_command_modes
On activation:
- home interface:
  - Reset command to 0.0. This clears any remaining commands that have been written to the command interface while the hardware was unable to act on it. For example if it was inactive or the homing command was not the active command mode.

Parameters

start_interfaces	vector of string identifiers for the command interfaces starting.
stop_interfaces	vector of string identifiers for the command interfaces stopping.

Returns: return_type::OK if the new command interface combination can be switched to (or) if the interface key is not relevant to this system. Returns return_type::ERROR otherwise.

◆ prepare_command_mode_switch()

hardware_interface::return_type bioscara_hardware_interfaces::BioscaraArmHardwareInterface::prepare_command_mode_switch	(	const std::vector< std::string > &	start_interfaces,
		const std::vector< std::string > &	stop_interfaces
	)

override

Performs checks and book keeping of the active control mode when changing controllers in non-realtime context.

For safe operation only one controller may interact with the hardware at the time. For example if the velocity JTC is active and has claimed the velocity command interfaces it is technically possible to activate the position JTC (or a homing controller, or others) that claim a different command interface (position in this case). However if both controllers are active they start writing to the hardware simultaneously which is to be avoided. For this reason a book keeping mechanism has been implemented which stores the currently active command interfaces for each joint in the _joint_command_modes member. Each joint has a set of active command interfaces. When a controller switch is performed the interfaces that should be stopped are removed from each joint set, then the one that should be started are added, if they are already present an error is thrown. Lastly a validation is performed. Currently the validation is simple since each joint may only have one command interface. The validation can be expanded for furture use cases that require a combination of active command interfaces per joint for example.
The following basic checks are implemented:

On deactivation:
- [ERROR] Homing command interfaces may only be deactivated if no current homing process is ongoing (bioscara_hardware_drivers::Joint::getCurrentBCmd() != bioscara_hardware_drivers::Joint::HOME)
- [WARN] Deactivating a velocity command interface if the velocity set point is 0.0.
- [WARN] Deactivating a command interface that has not been started. This should not happen.
On activation:
- [ERROR] Activating a command interface that is already started. This should not happen.
- [ERROR] Activating a second command interface for a joint.
- [ERROR] Activating 'position' or 'velocity' command interface if the joint is not homed (bioscara_hardware_drivers::Joint::isHomed() == false).

Since this method operates in non-realtime context it must not access critical members (_joint_command_modes and _joints) to avoid priority inversion. Therefore the new command modes are first saved to a cache _new_joint_command_modes. This will then be applied to _joint_command_modes in the perform_command_mode_switch() which is executed in RT context.

Parameters

start_interfaces	command interfaces that should be started in the form "joint/interface"
stop_interfaces	command interfaces that should be stopped in the form "joint/interface"

Returns: hardware_interface::return_type

◆ read()

hardware_interface::return_type bioscara_hardware_interfaces::BioscaraArmHardwareInterface::read	(	const rclcpp::Time &	time,
		const rclcpp::Duration &	period
	)

override

Reads from the hardware and populates the state interfaces.

Iterates over all state interfaces and calls the corresponding Joint method.

State interface "position" -> bioscara_hardware_drivers::Joint::getPosition()
State interface "velocity" -> bioscara_hardware_drivers::Joint::getVelocity()
State interface "home" -> bioscara_hardware_drivers::Joint::isHomed()
- This does not actually trigger a communication, instead it relies on the return flags of the previous transmissions. Since position and velocity have been called immediatly before the return flags are assumed to be valid.
- If the the homing of a joint has been activated through the command interface (bioscara_hardware_drivers::Joint::getCurrentBCmd() == bioscara_hardware_drivers::Joint::HOME) the device signals BUSY (bioscara_hardware_drivers::Joint::isBusy()) as long as it is still homing.
  If the BUSY flag is reset while the current command is still bioscara_hardware_drivers::Joint::HOME we can assume the homing has finished. Then the "home" command interface of the joint is reset to 0.0, which will stop the homing (perform cleanup tasks) at the next write cycle.

Parameters

time
period

Returns: hardware_interface::return_type

◆ split_interface_string_to_joint_and_name()

void bioscara_hardware_interfaces::BioscaraArmHardwareInterface::split_interface_string_to_joint_and_name	(	std::string	interface,
		std::string &	joint_name,
		std::string &	interface_name
	)

private

Split a interface string like "<joint_name>/<interface_name>" to "<joint_name>" and "<interface_name>".

Parameters

interface
joint_name
interface_name

◆ start_homing()

bioscara_hardware_drivers::err_type_t bioscara_hardware_interfaces::BioscaraArmHardwareInterface::start_homing	(	const std::string	name,
		float	velocity
	)

private

wrapper method to start homing.

Activate the joint, set homing acceleration and start homing.

Parameters

name
velocity

Returns: bioscara_hardware_drivers::err_type_t

◆ stop_homing()

bioscara_hardware_drivers::err_type_t bioscara_hardware_interfaces::BioscaraArmHardwareInterface::stop_homing ( const std::string name )

private

wrapper method to stop homing.

Stop the homing. Reset acceleration and velocity and perform the postHoming cleanup, then deactivate the joint.

Parameters

name

Returns: bioscara_hardware_drivers::err_type_t

◆ write()

hardware_interface::return_type bioscara_hardware_interfaces::BioscaraArmHardwareInterface::write	(	const rclcpp::Time &	time,
		const rclcpp::Duration &	period
	)

override

Writes commands to the hardware from the command interfaces.

In contrast to the read() method the write() method only loops over the command interfaces that are currently active defined by the _joint_command_modes map. See prepare_command_mode_switch() for a detailed reasoning why this approach has been chosen.

Command interface "position" -> bioscara_hardware_drivers::Joint::setPosition()
Command interface "velocity" -> bioscara_hardware_drivers::Joint::setVelocity()
Command interface "home" -> bioscara_hardware_drivers::Joint::startHoming()
- If the commanded value in "home" is != 0.0 the and the joint is currently executing a blocking function, for example homing (bioscara_hardware_drivers::Joint::getCurrentBCmd() == bioscara_hardware_drivers::Joint::NONE), the homing sequence is started with the speed, sensitivity, current and acceleration defined in the _joint_cfg which is polulated from the hardware description urdf. The direction of the homing is determined by the sign of the command interface value.
- If the commanded value in "home" is = 0.0 and the joint is currently executing homing, the homing is stopped. This can either happen prematurely through user input or when the homing is completed which is registered in read().

Parameters

time
period

Returns: hardware_interface::return_type

Member Data Documentation

◆ _joint_cfg

std::unordered_map<std::string, joint_config_t> bioscara_hardware_interfaces::BioscaraArmHardwareInterface::_joint_cfg

private

unordered map storing the configuration struct of the joints.

An unordered map is chosen to simplify acces via the joint name, as this conforms well with the ROS2_control hardware interface The map does not need to be ordered. Search, insertion, and removal of elements have average constant-time complexity.

◆ _joint_command_modes

std::unordered_map<std::string, std::set<std::string> > bioscara_hardware_interfaces::BioscaraArmHardwareInterface::_joint_command_modes

private

unordered map of sets storing the active command interfaces for each joint.

Each joint can have a set of active command interfaces. This type of structure is chosen to group interfaces by joint. In the write() function the interface name can simply be constructed by concatenating joint name with interface name. Although currently only one active command interface is allowed at the time, a set can be used to store multiple command interfaces that are acceptable to be combined, for example it would be acceptable to set velocity and driver current and hence that would be an allowable combination.

An unordered map is chosen to simplify acces via the joint name, as this conforms well with the ROS2_control hardware interface. The map does not need to be ordered. Search, insertion, and removal of elements have average constant-time complexity.

◆ _joints

std::unordered_map<std::string, std::unique_ptr<bioscara_hardware_drivers::BaseJoint> > bioscara_hardware_interfaces::BioscaraArmHardwareInterface::_joints

private

unordered map storing the pointers to BaseJoint objects. This will either be a MockJoint or Joint.

An unordered map is chosen to simplify acces via the joint name, as this conforms well with the ROS2_control hardware interface The map does not need to be ordered. Search, insertion, and removal of elements have average constant-time complexity.

Since the BaseJoint methods are implemented as virtual, dynamic method dispatch can be utilized to call the correct implementation of a method. So either BaseJoint::foo() or Joint::foo()/MockJoint::foo() if foo() is overwritten in Joint or MockJoint. a smart pointer is used to guarantee destruction when the pointer is destructed. A unique pointer is used to prevent copying of the object.

◆ _new_joint_command_modes

std::unordered_map<std::string, std::set<std::string> > bioscara_hardware_interfaces::BioscaraArmHardwareInterface::_new_joint_command_modes

private

Temporary cache of new joint_command_modes when switching controllers.

Since the prepare_command_mode_switch() is executed in a non-RT context we save the new joint command modes to this cache first to avoid needing to lock the _joint_command_modes.

◆ _ordered_joint_state_interfaces_ptr

std::vector<std::pair<std::string, hardware_interface::InterfaceDescription *> > bioscara_hardware_interfaces::BioscaraArmHardwareInterface::_ordered_joint_state_interfaces_ptr

private

A vector of a pair of interface name and pointer of the hardwares state interface which is ordered by joint and state interface type.

A vector is chosen since it guarantees the correct order by insertion. The vector holds pointers to the actual interface structs stored in the parents HardwareComponentInterface::joint_state_interfaces_ but in the desired order. The order is:

position
velocity
home

This order guarantees that when reading the state interfaces in read() that the 'home' interface is read last and has the latest state flags from the joint.

◆ mtx

std::mutex bioscara_hardware_interfaces::BioscaraArmHardwareInterface::mtx

private

A mutex that is used to prevent concurrent access to hardware and _joint_command_modes.

The mutex prevents two things:

Modifying the _joint_command_modes concurrently.
Concurrent access to the hardware via the _joints map. The Joint harwdare is not thread safe. In particular the read() and write() methods are executed in one RT thread while the perform_command_mode_switch() is called from another RT thread. The latter also tries to modify the Joint object via activate_joint() and deactivate_joint() which must not happen concurrently with a read() or write() call.

All methods that need to acquire this lock need to be performed in RT context to avoid being preempted by other lower priority threads potentially blocking the other RT threads from continuing.

The documentation for this class was generated from the following files:

lib/ros2_ws/src/dalsa_bioscara_arm/bioscara_arm_hardware_interface/include/bioscara_arm_hardware_interface/arm_hardware.hpp
lib/ros2_ws/src/dalsa_bioscara_arm/bioscara_arm_hardware_interface/src/arm_hardware.cpp

Classes

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Function Documentation

◆ activate_joint()

◆ deactivate_joint()

◆ on_activate()

◆ on_cleanup()

◆ on_configure()

◆ on_deactivate()

◆ on_error()

◆ on_init()

◆ on_shutdown()

◆ perform_command_mode_switch()

◆ prepare_command_mode_switch()

◆ read()

◆ split_interface_string_to_joint_and_name()

◆ start_homing()

◆ stop_homing()

◆ write()

Member Data Documentation

◆ _joint_cfg

◆ _joint_command_modes

◆ _joints

◆ _new_joint_command_modes

◆ _ordered_joint_state_interfaces_ptr

◆ mtx
